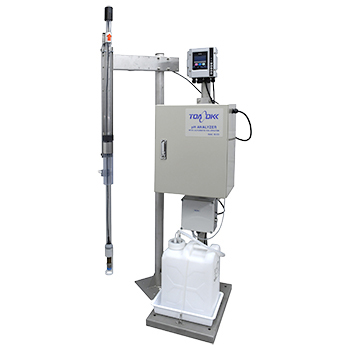

• ・Automates electrode cleaning and 2-point calibration with standard solution
• ・Labor saving in maintenance work and highly reliable pH measurement for a long time
• ・Achieves high cleaning effect and stability by lift-up type aerial jet cleaning / calibration
• ・One converter can control two detectors

• ・A simple measurement method using an ion element is employed.

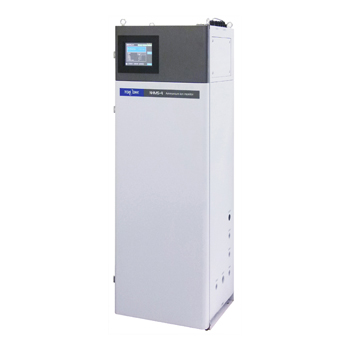

• ・Continuous monitoringfor ammonium ion concentration in plant wastewater, rivers, and water purification plant intake
• ・Automatic cleaning and automatic calibration function enables stable measurement
• ・Easy operation by touch panel method
• ・Low-concentration calibration function available (optional)

Measurement range

0.05 to 5/0.1 to 10/1 to 100 mg/L

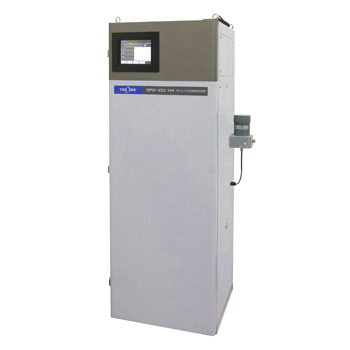

• ・Batch measurement of total nitrogen, total phosphorus, COD (UV) that correspond to factories, drainage inspection, and water quality regulation
• ・Usage of reagent reduced to 1/20 of specified measurement method
• ・Reagent exchange and waste liquid process once every 2 months
• ・Waste liquid amount is reduced to 7.5L/month

Measurement range

Total nitrogen: 0 to 2 mg/L to 200 mg/L

Total phosphorus: 0 to 0.5 mg/L to 20 mg /L

COD (UV method) : 0 to 2 Abs

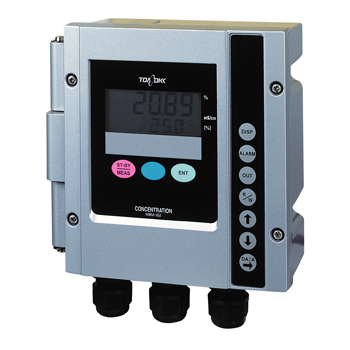

• ・Made of small aluminum die-cast, electromagnetic induction type on-site densitometer.
• ・Measure the electrical conductivity of salt, hydrochloric acid, sulfuric acid, etc. and convert to concentration (%).
• ・The measurement range can be adjusted according to your specifications.
• ・2-point adjustment output, 2-circuit transmission output including water temperature, RS-232 output (optional)

Measurement range example

0 to 10% NACI 30 to 40% HCI

93 to 99.5% H2SO4 0 to 15% NaOH

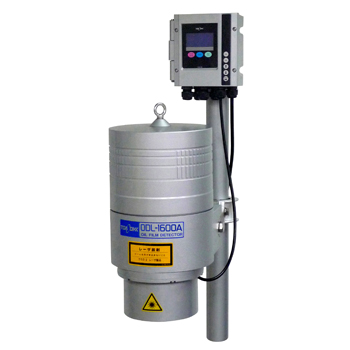

• ・A laser beam is applied to the surface of the water, and the oil film is detected from the difference in reflectance between oil and water.
• ・By improving the optical system such as light source scanning and speeding up signal processing, the effects of wide water level fluctuations, waviness, and suspended solids on the water surface are reduced.
• ・Easy maintenance as it is non-contact.

Detectable range

0.3 - 4m
